Mining conveyor drives represent the most demanding application class for heavy duty spiral bevel gearboxes. Underground coal conveyors run 24 hours per day, 365 days per year, in environments with high dust, elevated ambient temperature, and the ever-present risk of large lump material producing severe shock loads at the belt loading station. A gearbox failure on a critical mining conveyor stops production — and in underground applications, machine access for replacement can take 8–16 hours of preparation before the first bolt is turned. This guide covers the complete technical specification for heavy duty spiral bevel gearboxes in mining conveyor applications: load ratings, duty class classification, bearing life calculation, and material selection for extreme conditions.
1. Mining Conveyor Drive Classification
Mining conveyor drives are classified by duty class — a systematic framework that accounts for load variability, shock severity, and operational hours per day. The AGMA service factor system and the ISO/FEM duty class framework both provide tools for this classification. Ever Power applies AGMA service factors in gearbox selection and can provide ISO duty class documentation for projects requiring this format.
| Mining Application | Load Type | AGMA Service Factor | Ever Power Housing |
|---|---|---|---|
| Surface belt conveyor, uniform ore | Moderate shock | 1.5 – 1.75 | Cast iron or ductile iron |
| Underground belt conveyor, lump ore | Heavy shock | 2.0 – 2.5 | Ductile iron GGG50 |
| Mine shaft bucket conveyor | Very heavy shock, cyclic | 2.5 – 3.0 | Ductile iron GGG50 |
| Crusher discharge conveyor | Extreme shock, irregular | 3.0 – 3.5 | Ductile iron GGG50 |
| Long-distance overland conveyor | Moderate shock, continuous | 1.75 – 2.25 | Cast iron or ductile iron |
2. Bearing Life Calculation for Mining Duty
Bearing life in a heavy duty mining gearbox is calculated using the modified L10 life formula per ISO 281, with dynamic equivalent load calculated from the actual load spectrum — not just the nominal rated load. For mining conveyors, the load spectrum typically includes:
- Running load: 70–80% of rated torque for 85% of operating time
- Peak load at belt start: 150–200% of rated torque for 2–5 seconds per start
- Shock load at loading station: 250–350% of rated torque for 0.1–0.5 seconds per loading event
The AGMA service factor approach accounts for this spectrum by multiplying the nominal output torque by the service factor before comparing to the gearbox rated torque. Ever Power applies this method in all mining gearbox selections and provides the bearing L10 calculation with each quotation for critical mining applications.
Surface conveyors: minimum 30,000 hours
Underground conveyors: minimum 40,000 hours
Critical shaft drives: 50,000+ hours with premium bearing specification
3. Material Specification for Extreme Mining Environments
Wall thickness increased 25% over the standard industrial series at bearing boss sections and gear mesh zone. Fracture toughness 10x higher than grey iron — absorbs shock without catastrophic fracture. FEA-verified stress levels below 40% of material yield strength at 3x nominal torque.

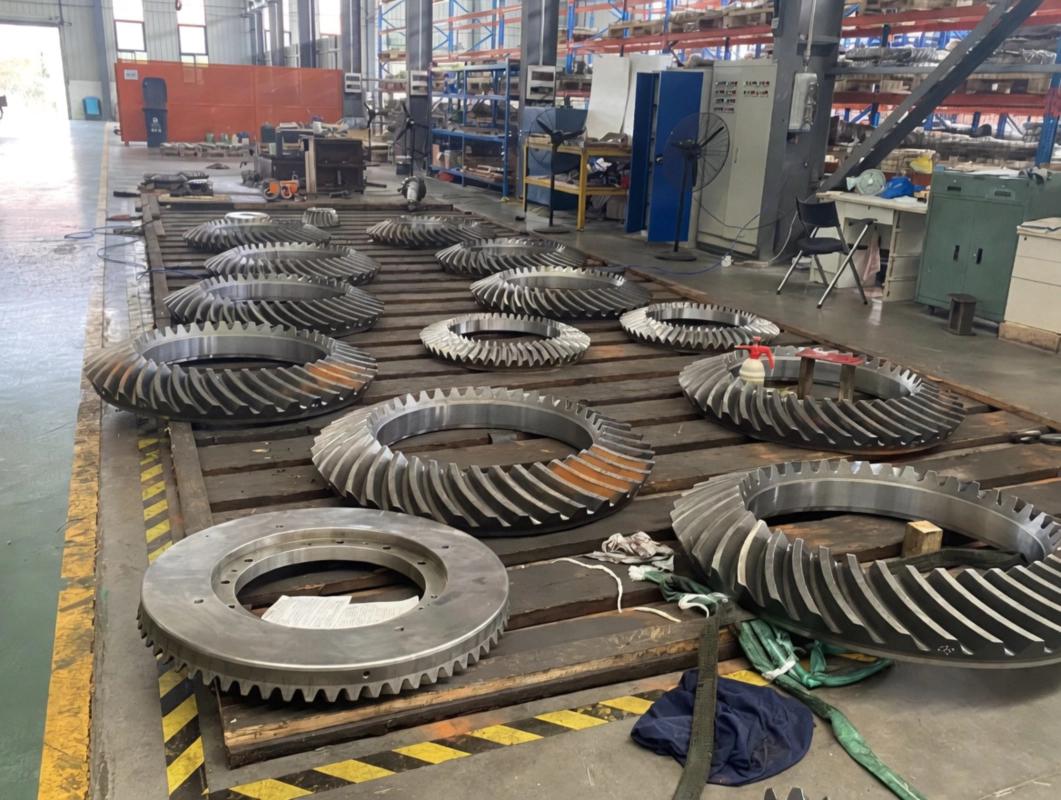

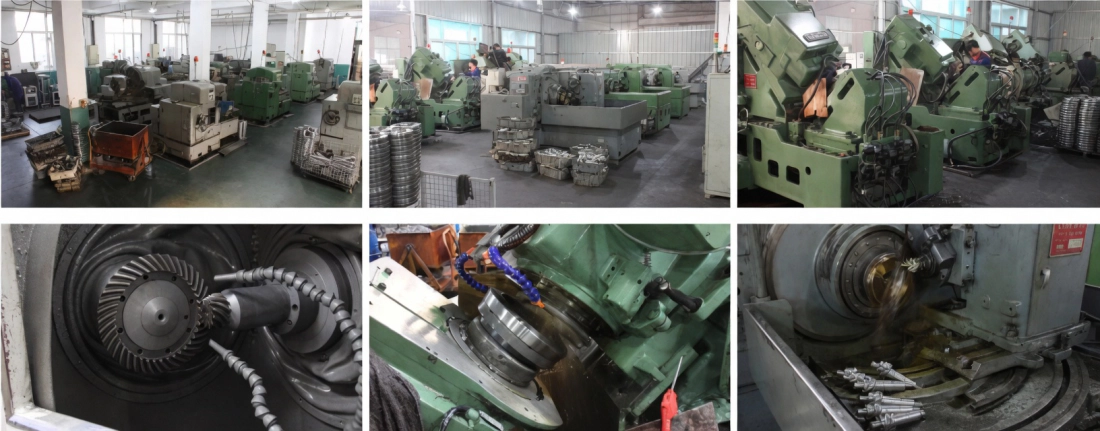

Large-module spiral bevel pairs (module 6–16 depending on size), double-shot carburized to 1.4–1.8 mm case depth, oil quenched in controlled atmosphere, lapped for optimum contact pattern. Surface hardness HRC 58–62; core hardness HRC 33–40.
Through-hardened to HRC 25–30 across full shaft cross-section — not just the journal surface. Provides maximum fatigue resistance under the cyclic bending loads imposed by belt pull reaction forces at the head pulley shaft.
Matched pairs of premium-grade tapered roller bearings (NSK, FAG, or equivalent) pre-loaded to controlled clearance. External oil cooler connection ports on units above 45 kW input. FKM (Viton) seals as standard for compatibility with synthetic mining-grade lubricants.
4. Thermal Management for 24/7 Mining Operation
Underground mines maintain ambient temperatures of 30–45°C in many operations — warmer than most surface industrial installations. Combined with the 5–6% heat generation from the gearbox at rated load, oil temperatures in underground gearboxes can approach or exceed the 90°C limit for mineral oil viscosity stability.
Ever Power addresses thermal management in heavy duty mining gearboxes through three approaches:
- Synthetic PAO oil specification — maintains adequate viscosity film at 90–100°C; extends oil change interval to 4,000 hours; reduces churning losses by 1–2% versus mineral oil
- External oil cooler port provision — all units above 45 kW input are supplied with oil cooler connection ports as standard, allowing shell-and-tube or plate-type cooler addition without housing modification
- Oil temperature monitoring port — standard thermowell boss on the housing allows direct oil temperature sensor installation for SCADA monitoring integration
5. Ever Power Heavy Duty Mining Gearbox — Key Specifications
| Parameter | Mining Grade Specification |
|---|---|
| Max Output Torque | Up to 80,000 N.m |
| Input Power Range | 45 kW to 335 kW |
| Available Ratios | 1:1, 1.5:1, 2:1, 3:1 standard; custom ratios available |
| Shock Rating | 3x continuous torque (instantaneous); service factor to 3.5 |
| L10 Bearing Life Target | 30,000 – 50,000 hours at rated load spectrum |
| Sealing | FKM double-lip + labyrinth; IP65 standard |
| Oil Cooling | External cooler ports standard on 45 kW+ units |
| Lubrication | Synthetic PAO ISO VG460 standard for mining duty |
| Certification | CE, ISO 9001, EN 10204 3.1 material certificates |
| Lead Time | 25 – 45 working days |
Customer Cases
Chile — Copper Mine, Atacama Desert
Heavy duty bevel-T gearboxes on a 1.4 km underground conveyor system at 3,500 m altitude. Operating at 38°C ambient with high dust. External cooling fitted. FKM seals specified. After 28 months continuous operation — oil temperature consistently 12°C below the limit. Zero unplanned stoppages due to gearbox failure.
“The thermal specification was critical at altitude. Ever Power’s engineering team understood what we needed.” — Mine Maintenance Manager
South Africa — Gold Mine, Witwatersrand
Replaced Bonfiglioli 300 series bevel units on underground belt conveyor drives. Oil analysis after 12 months showed lower iron wear particle concentration in Ever Power units than in the Bonfiglioli units they replaced — indicating lower gear mesh wear rate. Total cost including delivery: 32% lower.
“Oil analysis data gave us objective evidence of equal or better performance. That was decisive.” — Reliability Engineer
Australia — Coal Preparation Plant, Queensland
Ever Power heavy duty spiral bevel gearboxes on a bucket conveyor in a wet coal fines environment. IP65 sealing with labyrinth protection. After 18 months: zero seal failures, no water ingress detected in oil sampling. Housing surface treatment showed no corrosion at first annual inspection.
“Wet coal fines destroy seals on most gearboxes within 6 months. These held.” — Maintenance Superintendent
FAQ
Mining conveyor drive requiring heavy duty spiral bevel gearboxes?
Ever Power provides full load spectrum analysis, bearing life calculation, and service factor documentation for mining conveyor applications. CE certified, fast global delivery.
